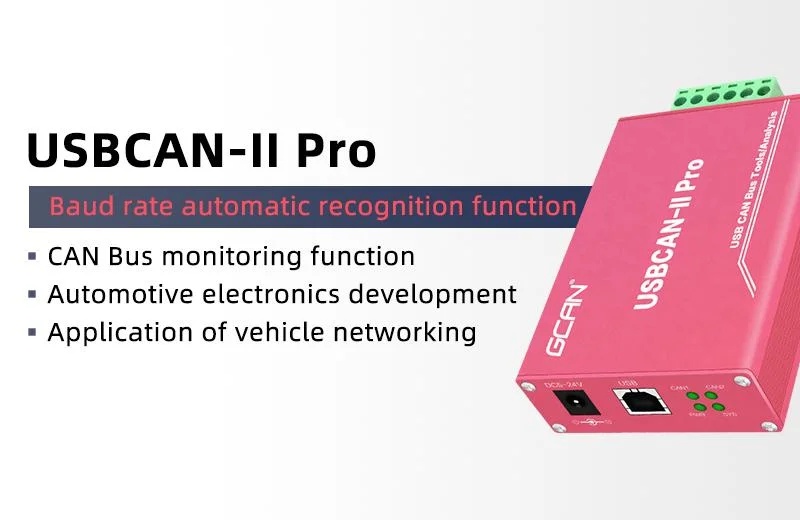

USBCAN-II Pro
1.879,59 RON
1.553,38 RON
(fara TVA)
Cum te putem ajuta?
USBCAN-II Pro este un instrument de depanare sau analiză cu două canale CAN-Bus. Folosind acest adaptor, PC-ul se poate conecta rapid la rețeaua CAN-Bus prin interfața USB și devine un nod inteligent al rețelei CAN-Bus pentru a transmite/recepționa date CAN-Bus.
| Size(LxWxH) | 92*63*30 |
| Operating temperature | -40°C~85°C |
| The shell material | Aluminum alloy |
| Interface form | Open 6 |
| CAN channel number | Double |
| Electrical | |
| Voltage supply | USB supply |
| Working voltage | 5V |
| Isolation voltage | Magnetic isolation of 3000V |
| System | |
| Support system | Windows 2000/2003 XP /7/8/10/ E.g. |
| development environment | VC VB C C+ C++ C++Builder NET Labwindows Delphi LabVIEW |
| CAN bus characteristics | |
| Baud rate | 5Kbps----1Mbps |
| Transfer speed | Send up to 8000 frames/s and receive up to 14000 frames/s |
| Execution standard | Support CAN 2.0A CAN2.0B ISO/DIS 1188-1/2/3 |
| USB bus characteristics | |
| Execution standard | Compliant with USB2.0 full speed Compatible with USB1.1 Spupport USB3.0 |
SKU
SGS-8543909000-USB
Categorii
Greutate
1 kg
Brand
Livrare
Min. 3 zile in momentul confirmării plăti
